• TS403 Roller stand

  • TS403A Angle roller stand 45°-0°-45°

SHIBUYA drill rig - R2231

  • Ideal machine which covers all range up to 400 mm core drilling jobs.

  • Multi-position water swivel inlet for convenience.

  • Right and left hand feed handle positions.

  • Built-in on/off switch with and motor overload protection. safety clutch

  • Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage. (220-240V only)

  • Stand Column: 1000mm (39″) with 618 mm (24″) stroke. 1.5 meter column and swivel top available

  • 60 x 60 mm (2-3/8″ x 2-3/8″) square column.

  • Tool kit including wrenches and allen keys.

Maximum Bit Capacity: 400 mm ( 16") with 30 mm spacer

Industrial 3 speed single phase motor

Applications and Features :

Stand options :

'A' swivel SHIBUYA Core drill- R2231

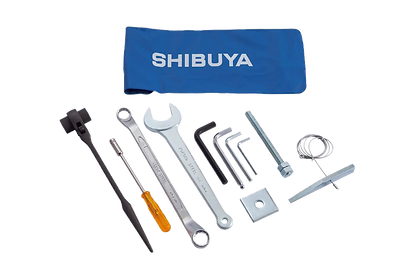

Standard tool kit TS-403 'A' SHIBUYA Core drill- R2231

Standard tool kit TS-403(A)



  • Allen Key 4, 6, 8, 10 mm

  • Ratchet Wrench 19 x 21mm

  • Ring Wrench 19 x 21mm

  • Single-End Spanner 36 mm

  • Nut Driver 7 mm

  • Core Removal Wedge Lasso

  • W1/2″ Square Washer Threaded Bolt, Nut

The motor ventilation system is designed to prevent water from flowing inside the motor with effective air cooling capacity.

The water inlet valve swivels 360˚ to allow easy water hose connection even in the tightest work places.

Move the feed handle on right or left side with ease to accommodate different working conditions. No tools necessary.

PRCD cuts off the electricity when it detects electric leakage. (Standard feature for 220-240V machine only.)

The circuit protector is conveniently located on the drill and features motor overload protection.

A swivel base available as option

Specifications and product appearances are subject to change without prior notice.

The diamond core bit in the picture is not included in the item.

Standard tool kit TS-403 SHIBUYA Core drill- R2231

Standard tool kit TS-403



  • Allen Key 4 and 6 mm

  • Ratchet Wrench 19 x21 mm

  • Single-End Spanner 36 mm

  • Nut Driver 7 mm

  • Core Removal Wedge Lasso

  • W1/2″ Square Washer Threaded Bolt, Nut

SHIBUYA Core drill- R2231

ACCESSORIES

SPECIFICATIONS

FEATURES
